1688816
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

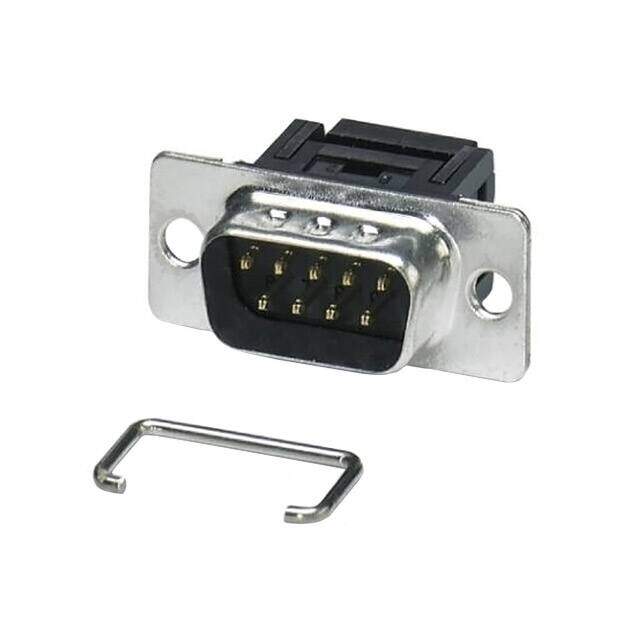

D-Sub Standard Connectors VS-09-ST-DSUB-FK 9P MALE CONTACT
PDF
/
Buying Options
Total Price: USD $14.97
Unit Price: USD $14.9688
≥1 USD $14.9688
≥10 USD $13.77112
≥100 USD $12.723568
≥500 USD $12.124728
≥1000 USD $12.058182
Inventory: 43
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2003
Series PLUSCON
Feature Feed Through, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Gender Male
Voltage - Rated 125V
Contact Type Signal
Current Rating (Amps) 1A
Orientation Straight
Depth 23.2mm
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E
Dimensions
Length 31.19mm
Width 12.93mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
