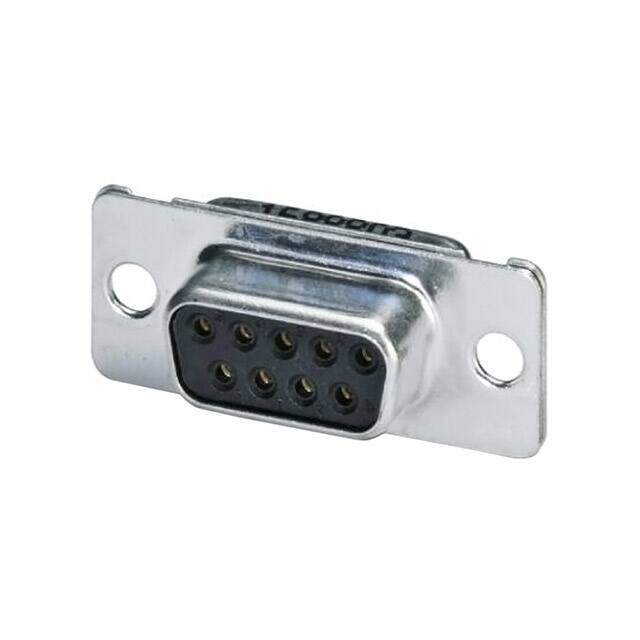

1688803 image
Favorite
1688803 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors VS-09-BU-DSUB-EG
PDF
/
Buying Options
Total Price: USD $7.3
Unit Price: USD $7.29772
≥1 USD $7.29772
≥10 USD $6.884642
≥100 USD $6.494944
≥500 USD $6.127309
≥1000 USD $5.780473
Inventory: 920
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 31.19mm

Technical

Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
Approval Agency UL
Contact Finish Gold
Shell Finish CHROMATE
Current Rating 5A
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 125V
Gender Female
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
