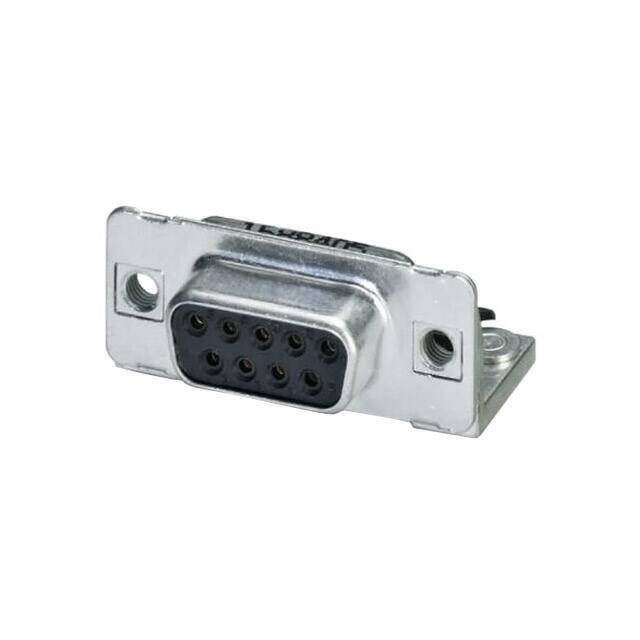

1688405 image
Favorite
1688405 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors VS-09-BU-DSUB-ER 9POS FM W/ANG SOLDER
PDF
/
Inventory: 2146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Backset Spacing 0.370 (9.40mm)
Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Empty Shell NO
Contact Finish Gold
Current Rating 5A
Reach Compliance Code unknown
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 125V
Gender Female
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Mounting Brackets
JESD-609 Code e4
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material Glass
Dielectric Material Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 5 Weeks
