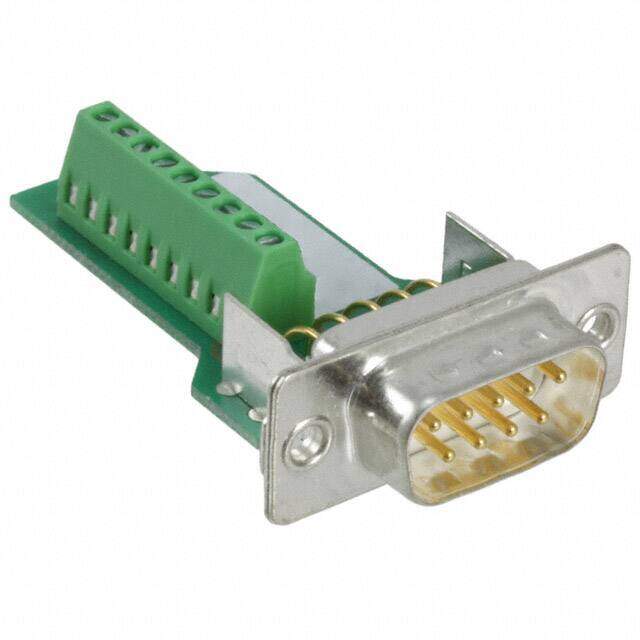

1688379
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB PLUG 9POS TERM BLK
PDF
/
Buying Options
Total Price: USD $24.35
Unit Price: USD $24.3496
≥1 USD $24.3496
≥10 USD $22.39864
≥100 USD $20.694256
≥500 USD $19.72036
≥1000 USD $19.612102
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Free Hanging (In-Line)
Package / Case Module
Material Gold, Nickel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Housing Material PBT
Weight 1.000001g
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2003
Series PLUSCON
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Terminal Block
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Gender Male
Voltage - Rated 60V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Orientation Right Angle
Ingress Protection IP20
Depth 41.8mm
Reach Compliance Code not_compliant
Current Rating 5A
Contact Finish Gold
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E
Dimensions
Length 31mm
Width 12.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
