1688230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

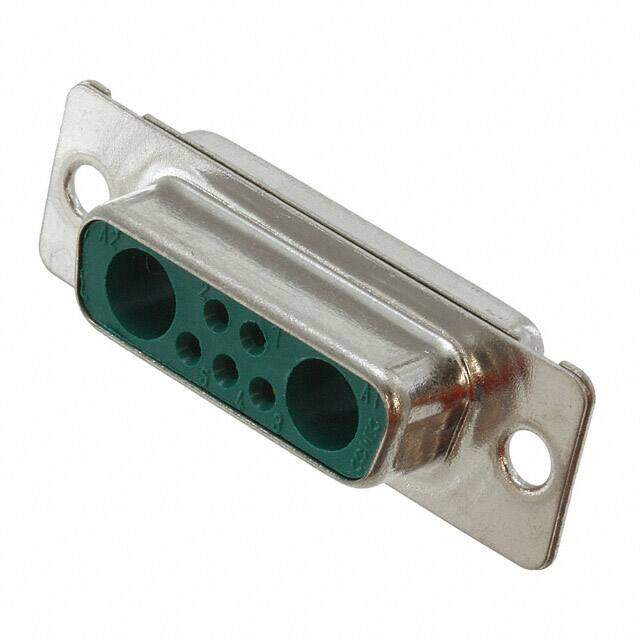

D-Sub Mixed Contact Connectors VS-15-BU-DSUB-2P-5S
PDF
/
Inventory: 1154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Insulation Insulated
Shell Size, Connector Layout 2 DA A - 7W2
Number of Ports 1
Connector Style D-Sub, Combo
Plating Chromate, Steel
Max Current Rating 5A
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Current Rating 5A
Orientation Straight
Total Number of Contacts 7
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.30
Voltage - Rated 250V
Gender Female
Number of Rows 2
Number of Positions 7 (5 + 2 Coax or Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Weight 4.350008g
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Number of Pins 7
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 5 Weeks
