1688227
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

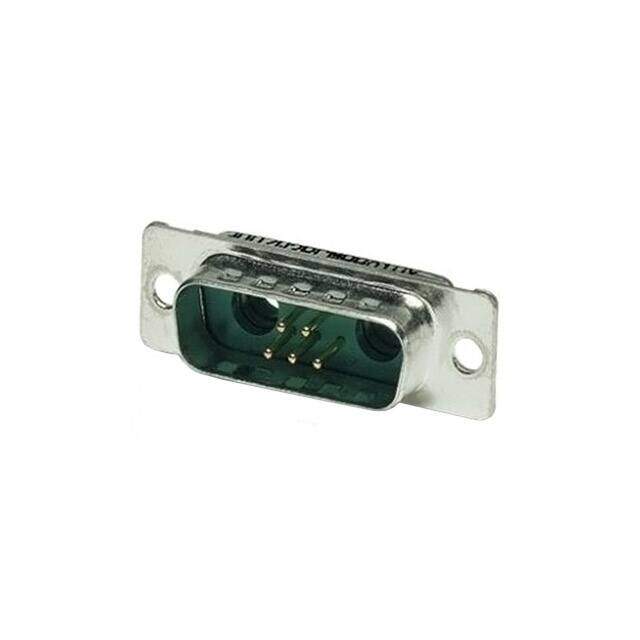

D-Sub Tools & Hardware VS-15-ST-DSUB-2P-5S
PDF
/
Buying Options
Total Price: USD $7.95
Unit Price: USD $7.948784
≥1 USD $7.948784
≥10 USD $7.498853
≥100 USD $7.07438
≥500 USD $6.673952
≥1000 USD $6.296183
Inventory: 5031
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 39.52mm
Technical
Shell Size, Connector Layout 2 DA A - 7W2
Number of Ports 1
Connector Style D-Sub, Combo
Plating Chromate, Steel
Max Current Rating 5A
Max Supply Voltage 250V
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Contact Finish Gold
Current Rating 5A
Orientation Straight
Option GENERAL PURPOSE
Contact Type Signal and Coax or Power (Not Included)
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 2
Number of Positions 7 (5 + 2 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Weight 6.16999g
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Number of Pins 5
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 5 Weeks
