RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

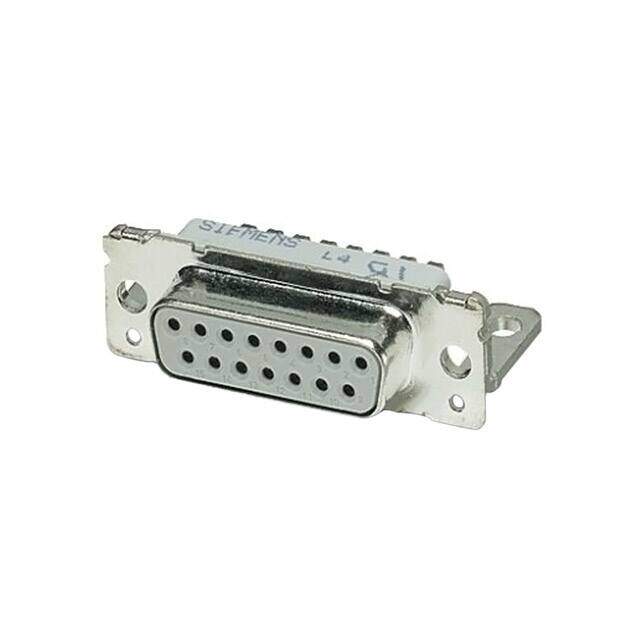

Description D-Sub Standard Connectors VS-15-BU-DSUB-ER 15P FM W/ANG SOLDER
PDF
/
Inventory: 6238
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Weight 14.920014g
Shell Material, Finish Steel, Yellow Chromate Plated

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2003
Series PLUSCON
JESD-609 Code e4
Feature Board Lock, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Gender Female
Voltage - Rated 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 15
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (M3)
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.370 (9.40mm)

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
