1688081
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

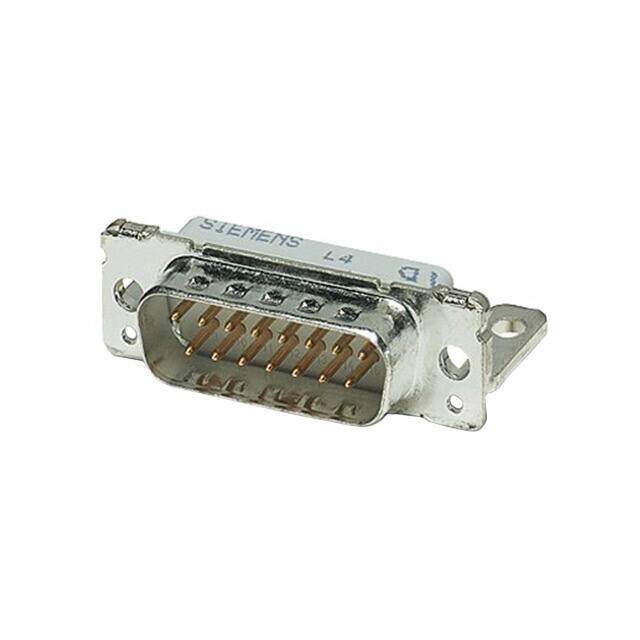

D-Sub Standard Connectors VS-15-ST-DSUB-ER 15POS M W/ANG SOLDER
PDF
/
Inventory: 4973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2003
Series PLUSCON
JESD-609 Code e4
Feature Board Lock, Grounding Indents, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Gender Male
Voltage - Rated 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 15
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (M3)
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
