1688078
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / D-Sub Connectors
Description

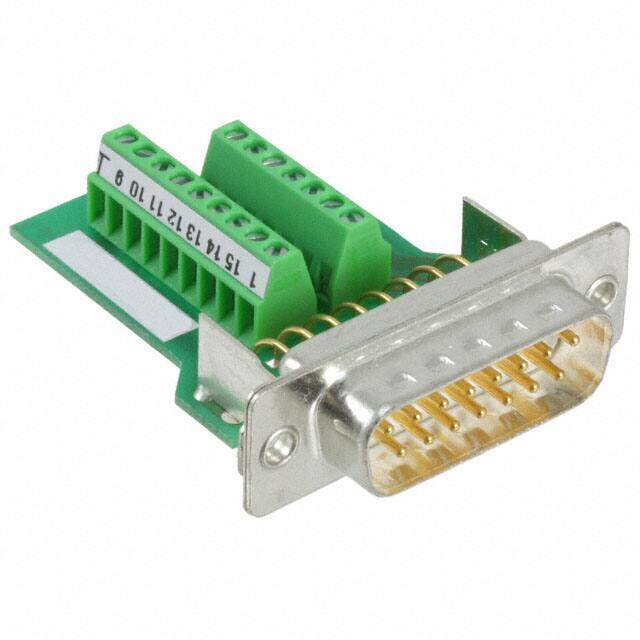

CONN D-SUB PLUG 15P TERM BLK
PDF
/
Buying Options
Total Price: USD $27.91
Unit Price: USD $27.9136
≥1 USD $27.9136
≥10 USD $25.67752
≥100 USD $23.723568
≥500 USD $22.6072
≥1000 USD $22.48312
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP20, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.6mm
Length 39.3mm
Technical
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Current Rating 5A
Reach Compliance Code not_compliant
Depth 40.8mm
Ingress Protection IP20
Orientation Straight
Total Number of Contacts 15
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 60V
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
Termination Terminal Block
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Package / Case Module
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
