1655111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

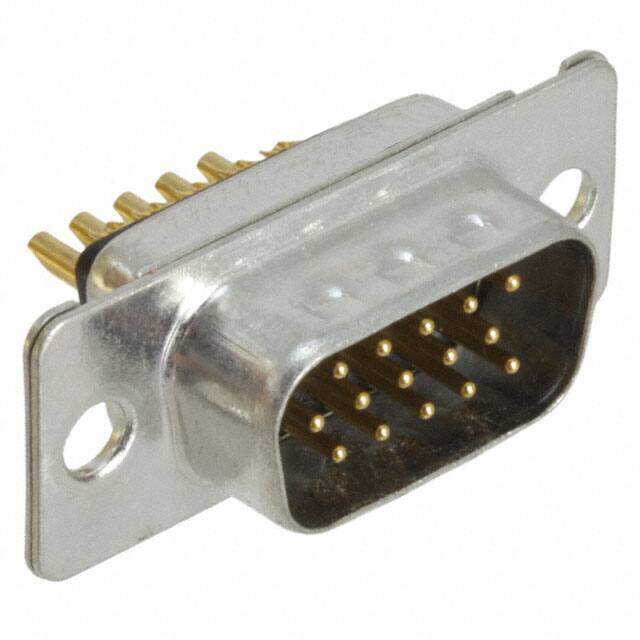

D-Sub High Density Connectors VS-09-ST-DSUB-HD-EG
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.944
≥1 USD $9.944
≥10 USD $9.152
≥100 USD $8.455392
≥500 USD $8.057544
≥1000 USD $8.01328
Inventory: 36
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Weight 6.26g
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series PLUSCON
JESD-609 Code e4
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 15
Color Yellow
Number of Rows 3
Voltage - Rated 60V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 15
Orientation Straight
Reach Compliance Code unknown
Current Rating 3A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 22 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 1 DE E High Density
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
