1655108
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

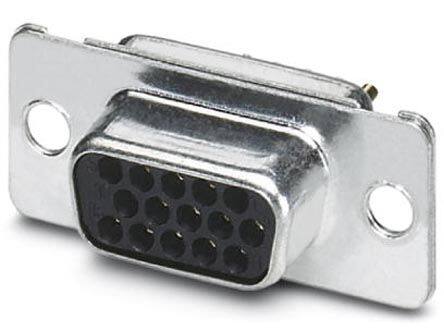

D-Sub High Density Connectors VS-09-BU-DSUB-HD-EG
PDF
/
Buying Options
Total Price: USD $13.12
Unit Price: USD $13.1208
≥1 USD $13.1208
≥10 USD $12.0736
≥100 USD $11.15488
≥500 USD $10.630048
≥1000 USD $10.571651
Inventory: 80
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Weight 6.599996g
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Gender Female
Voltage - Rated 60V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 15
Current Rating 3A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 1 DE E High Density
Insulation Non-Insulated
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
