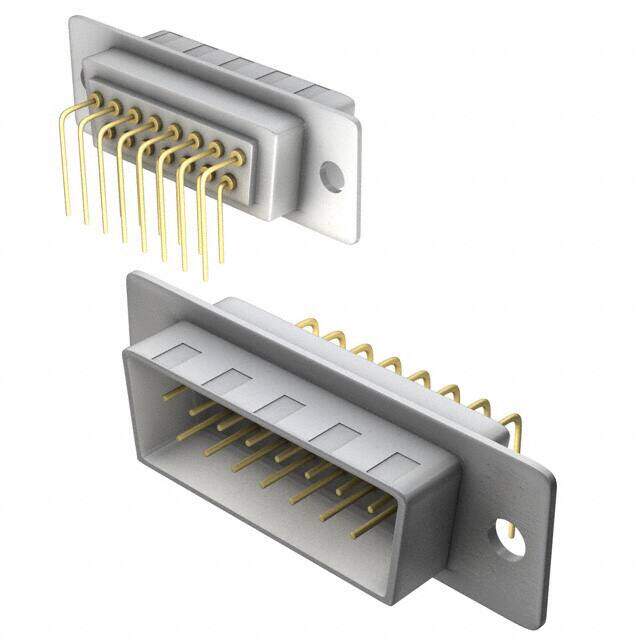

774-E15-113R001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 15POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $8.12
Unit Price: USD $8.121963
≥1 USD $8.121963
≥10 USD $7.662233
≥100 USD $7.228517
≥500 USD $6.81936
≥1000 USD $6.43336
Inventory: 9367
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Material Metal
Dielectric Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Body Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2006
Series Seal-D 774-E
Feature Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 15
Color White
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Contact Type Signal
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.370 (9.40mm)
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
