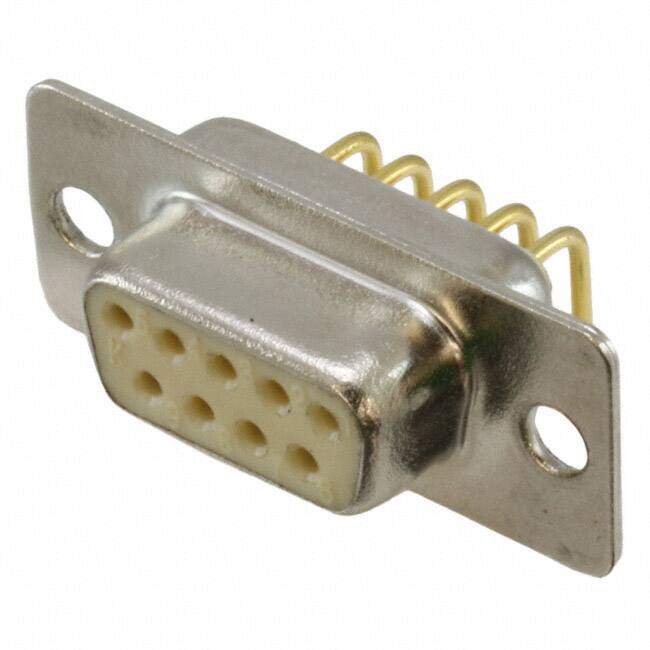

774-E09-213R001 image
Favorite
774-E09-213R001 image
Favorite

774-E09-213R001

NorComp Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB RCPT 9POS R/A SOLDER
PDF
/
Inventory: 3641
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash

Technical

Backset Spacing 0.370 (9.40mm)
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Contact Finish Gold
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Contact Type Signal
Gender Female
Number of Rows 2
Color White
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Seal-D 774-E
Published 2012
Packaging Tray
Operating Temperature -50°C~100°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Nylon
Dielectric Material Polyamide (PA6T), Nylon 6T
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 14 Weeks
