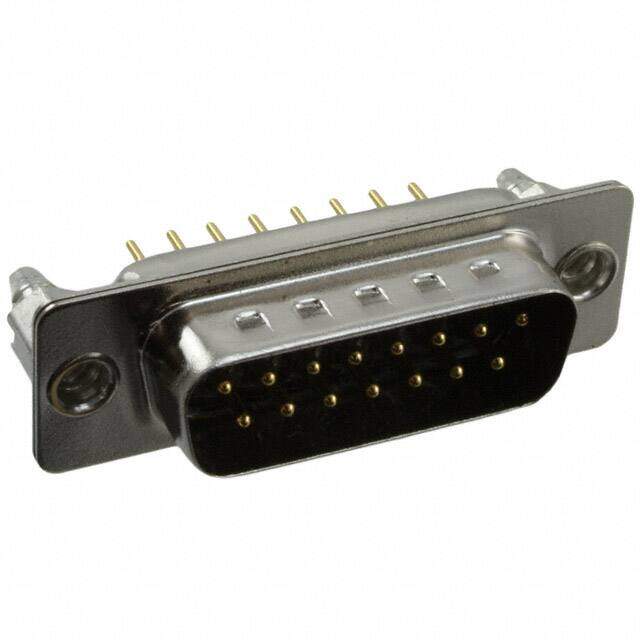

772-E15-113R051
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 15P PNL MNT SLDR
PDF
/
Buying Options
Total Price: USD $8.44
Unit Price: USD $8.4392
≥1 USD $8.4392
≥10 USD $7.5988
≥100 USD $7.15792
≥500 USD $6.97444
≥1000 USD $6.79089
≥3000 USD $6.056714
Inventory: 147
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2011
Series Seal-D 772-E
Feature Board Lock, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 15
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Contact Finish Gold
Flange Feature Board Side (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
