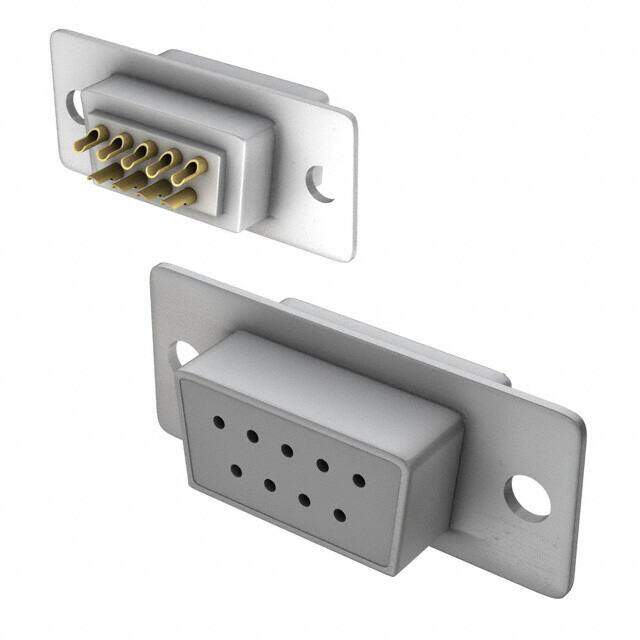

772-E09-203R001 image
Favorite
772-E09-203R001 image
Favorite

772-E09-203R001

NorComp Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB RCPT 9POS PNL MNT
PDF
/
Buying Options
Total Price: USD $37.1
Unit Price: USD $18.55
≥2 USD $18.55
≥10 USD $17.5
Inventory: 44
Minimum: 2
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Contact Material Brass
Mount Free Hanging
Mounting Type Panel Mount
Material Metal
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Nickel Plated

Technical

Operating Temperature -50°C~100°C
Packaging Tray
Published 2010
Series Seal-D 772-E
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color White
Number of Rows 2
Gender Receptacle
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Contact Finish Gold
Empty Shell NO
Wire Gauge 20-26 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E

Dimensions

Contact Finish Thickness Flash

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
