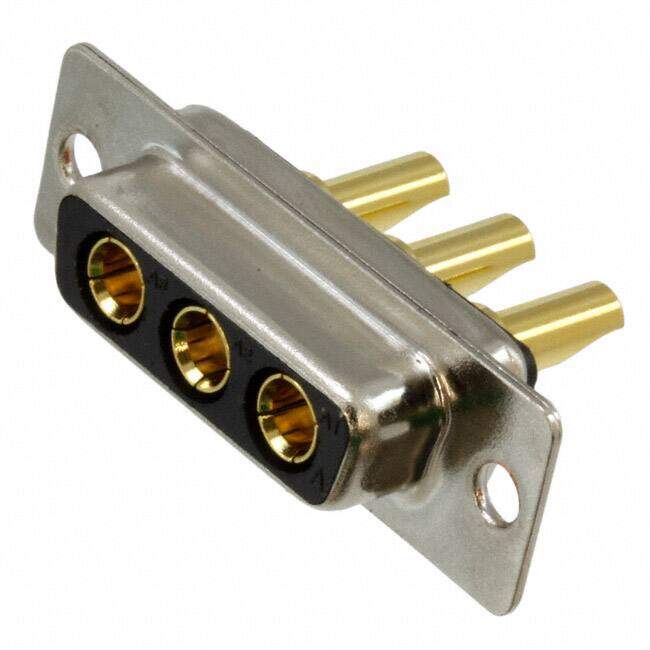

680S3W3203L201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 3POS PNL MNT
PDF
/
Buying Options
Total Price: USD $15.95
Unit Price: USD $15.9544
≥1 USD $15.9544
≥10 USD $13.83096
≥100 USD $13.108832
≥500 USD $12.91862
≥1000 USD $11.39886
≥3000 USD $10.638945
Inventory: 32
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~155°C
Packaging Tray
Published 2007
Series Seal-D 680S
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 3 (Power)
Color Black
Number of Rows 1
Gender Receptacle
Contact Type Power
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 20A
Contact Finish Gold
Number of Contacts 3
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Shell Size, Connector Layout 2 DA A - 3W3
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
