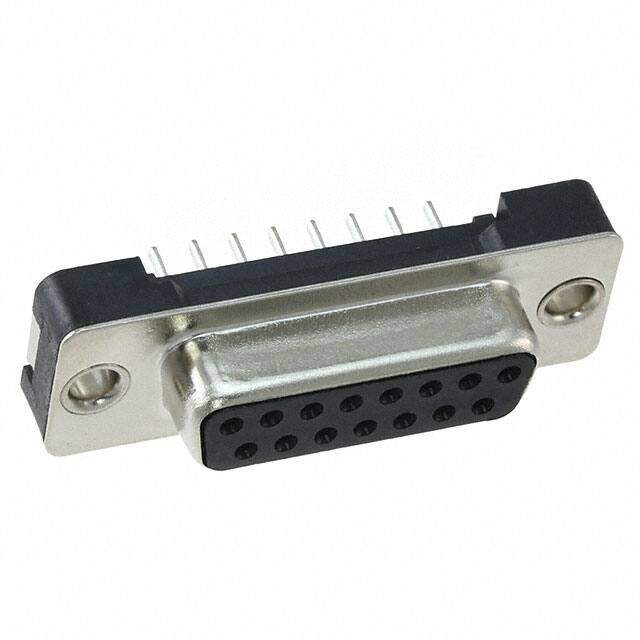

191-015-213L001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 15POS FEM 5A Steel
PDF
/
Buying Options
Total Price: USD $2.71
Unit Price: USD $2.70879
≥1 USD $2.70879
≥10 USD $2.555457
≥100 USD $2.410811
≥500 USD $2.274346
≥1000 USD $2.145617
Inventory: 2626
Minimum: 1
-
+
Technical Details
Physical
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polyester Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2009
Series 191
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Black
Number of Rows 2
Gender Female
Contact Type Signal
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Dimensions
Height 12.1mm
Length 39.2mm
Width 12.5mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Supply Chain
Factory Lead Time 14 Weeks
