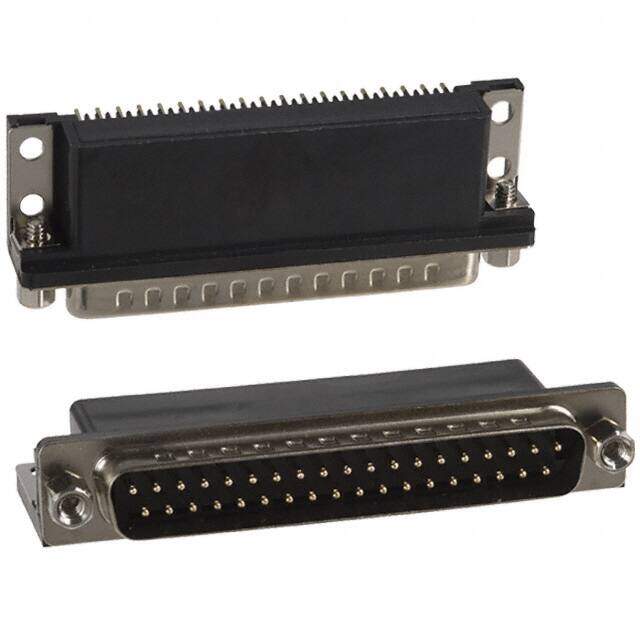

183-037-113R181
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 37POS R/A SOLDER
PDF
/
Inventory: 8641
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 24.9mm
Length 69.3mm
Height 12.5mm
Technical
Backset Spacing 0.590 (14.99mm)
Shell Size, Connector Layout 4 DC C
Connector Style D-Sub
Flange Feature Mating Side, Female Screwlock (4-40)
Contact Finish Gold
Current Rating 5A
Contact Type Signal
Gender Male
Number of Rows 2
Color Black
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Ground Strap, Grounding Indents
Series 183
Published 2008
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Nylon
Dielectric Material Polyamide (PA9T), Nylon 9T
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
