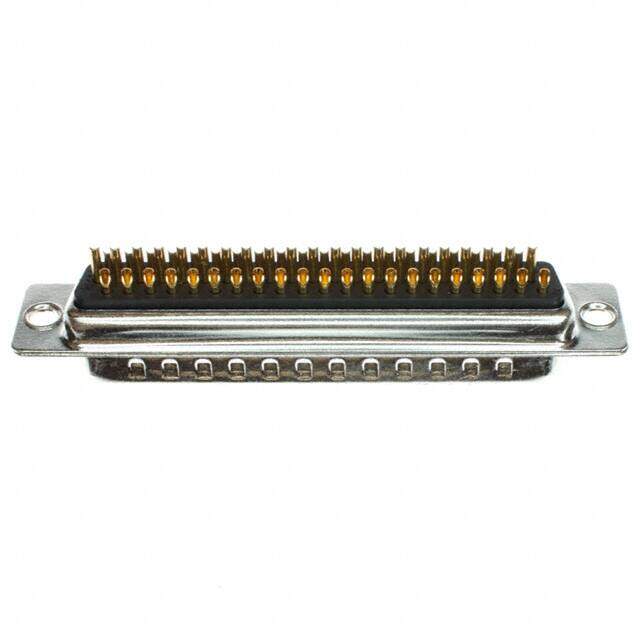

180-M62-103L001 image
Favorite
180-M62-103L001 image
Favorite

180-M62-103L001

NorComp Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB HD PLUG 62POS PNL MNT
PDF
/
Buying Options
Total Price: USD $14.67
Unit Price: USD $14.6696
≥1 USD $14.6696
≥10 USD $12.71424
≥100 USD $12.05072
≥500 USD $11.87604
≥1000 USD $10.478934
≥3000 USD $9.780355
Inventory: 125
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash

Technical

Shell Size, Connector Layout 4 DC C High Density
Contact Form Machined
Connector Style D-Sub, High Density
Plating Nickel
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 24-28 AWG
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Current Rating 5A
Total Number of Contacts 62
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 3
Color Black
Number of Positions 62
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Grounding Indents, Shielded
Series 180-M, M Series
Published 2008
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Nickel Plated
Body Material Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Panel Mount
Mount Free Hanging
Contact Material Brass

Supply Chain

Factory Lead Time 14 Weeks
