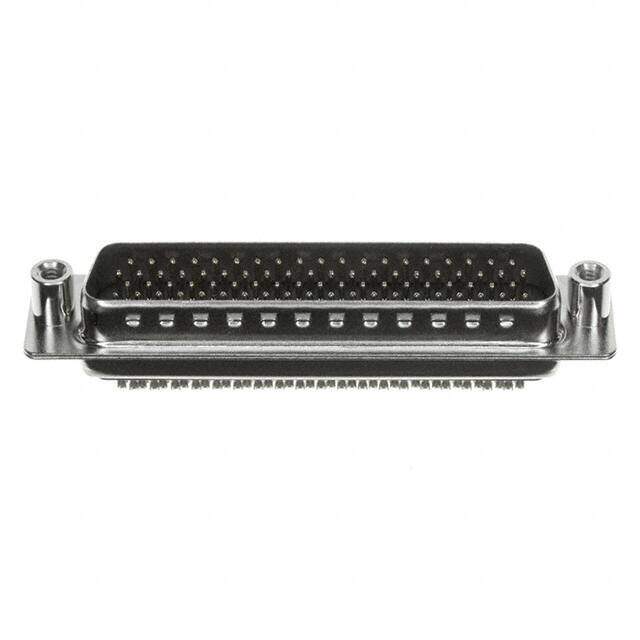

180-078-103L031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB HD PLUG 78POS PNL MNT
PDF
/
Buying Options
Total Price: USD $10.85
Unit Price: USD $10.846876
≥1 USD $10.846876
≥10 USD $10.232899
≥100 USD $9.653682
≥500 USD $9.107248
≥1000 USD $8.591745
Inventory: 4176
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.6mm
Length 67mm
Height 10.2mm
Technical
Shell Size, Connector Layout 5 DD D High Density
Wire/Cable Gauge 24 AWG
Connector Style D-Sub, High Density
Plating Nickel
Flange Feature Mating Side (4-40)
Empty Shell NO
Housing Color Black
Voltage - Rated AC 500V
Contact Finish Gold
Current Rating 5A
Total Number of Contacts 78
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 4
Number of Positions 78
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Grounding Indents, Shielded
Series 180
Published 2008
Packaging Tray
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount
Mount Free Hanging, Panel
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
