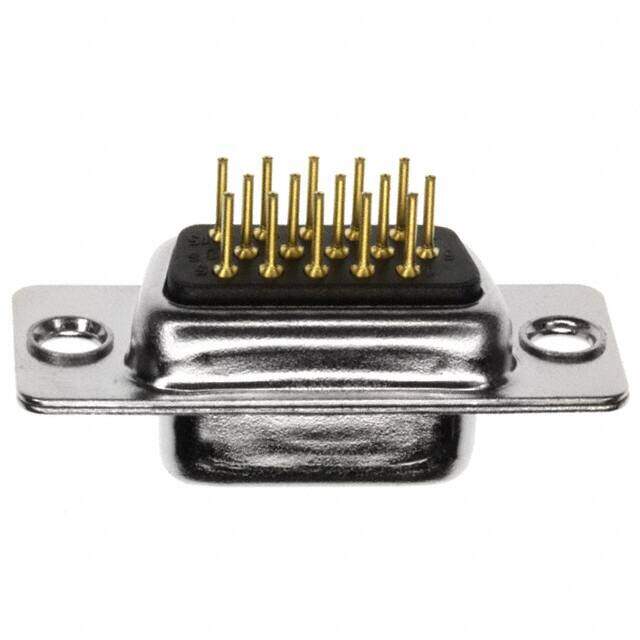

180-015-213R001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D Sub Connector, 180 Series, De, Receptacle, 15, Steel, Through Hole Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.4904
≥1 USD $2.4904
≥10 USD $2.25984
≥100 USD $2.14016
≥500 USD $2.090528
≥1000 USD $1.990912
≥3000 USD $1.742048
Inventory: 18
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2009
Series 180
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Gender Receptacle
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Total Number of Contacts 15
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Housing Color Black
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Plating Tin
Connector Style D-Sub, High Density
Shell Size, Connector Layout 1 DE E High Density
Dimensions
Height 9.93mm
Length 30.8mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
