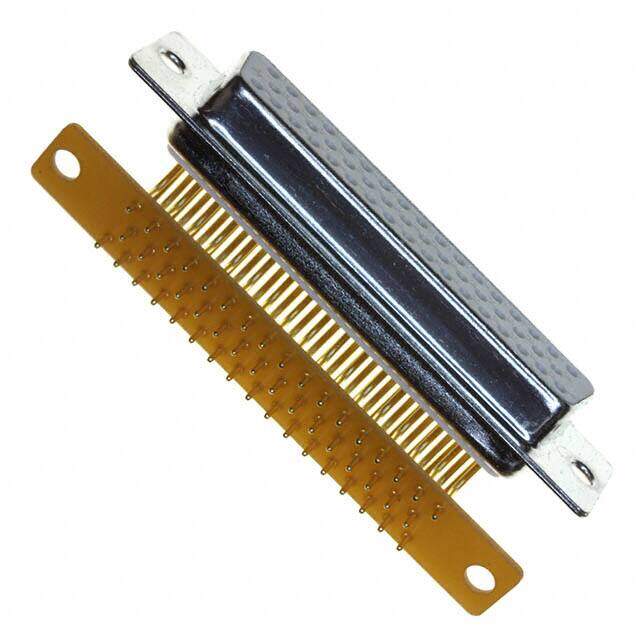

174-E50-212-001
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 50POS R/A SOLDER
PDF
/
Inventory: 3805
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Color White
Number of Rows 3
Gender Female
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 5 DD D
Backset Spacing 0.370 (9.40mm)
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 50
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 174-E
Published 2002
Operating Temperature -50°C~100°C
Dimensions
Height 15.4mm
Length 69.3mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
