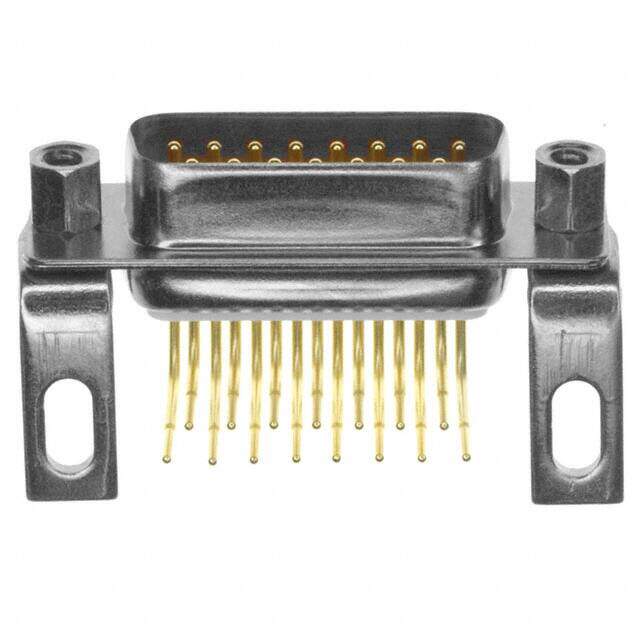

174-E15-111-141

NorComp Inc.
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 15POS R/A SOLDER
PDF
/
Inventory: 1623
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 15
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.370 (9.40mm)
Part Status Obsolete
Feature Mounting Brackets
Series 174-E
Published 2002
Operating Temperature -50°C~100°C

Dimensions

Height 12.6mm
Length 39.1mm
Contact Finish Thickness Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Brass
