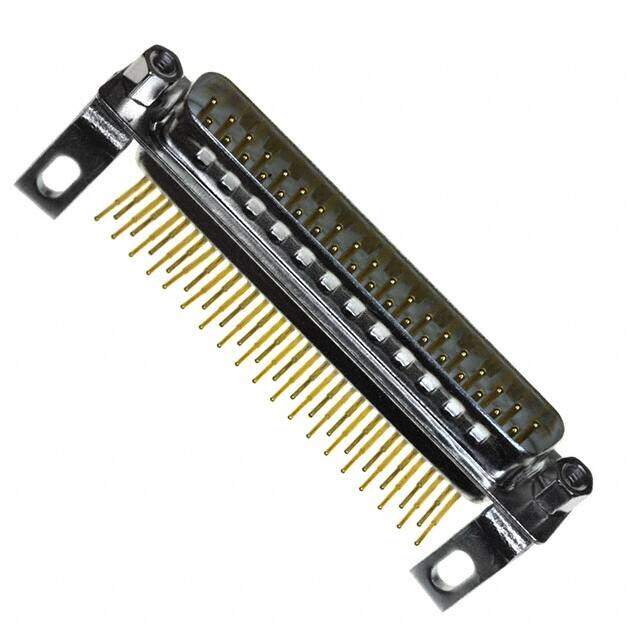

173-E37-112-141
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 37POS R/A SOLDER
PDF
/
Inventory: 6771
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2002
Series 173-E
Feature Grounding Indents, Mounting Brackets
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 37
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 4 DC C
Backset Spacing 0.283 (7.20mm)
Dimensions
Height 12.6mm
Length 69.3mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
