173-025-212R141
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description

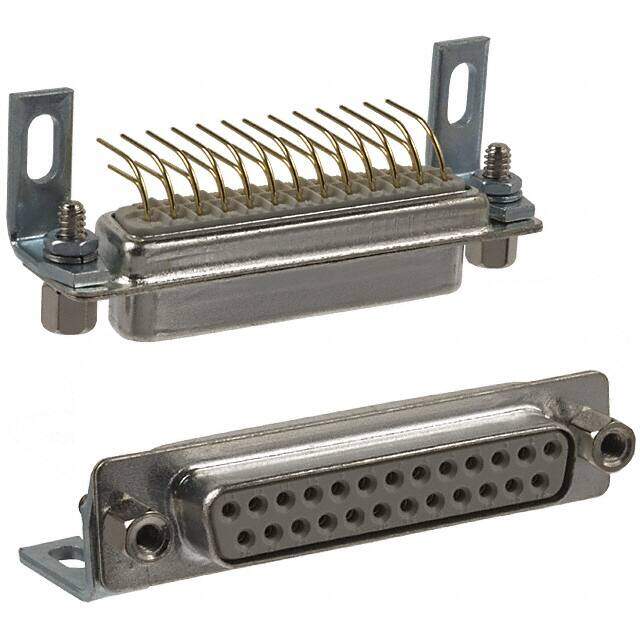

CONN D-SUB RCPT 25POS R/A SOLDER
PDF
/
Inventory: 3698
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Housing Material PBT
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -50°C~100°C
Published 2012
Series 173, M Series
Feature Mounting Brackets
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 25
Color Beige
Number of Rows 2
Contact Type Signal
Current Rating 5A
Contact Finish Gold
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.283 (7.20mm)
Dimensions
Height 12.6mm
Length 53mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
