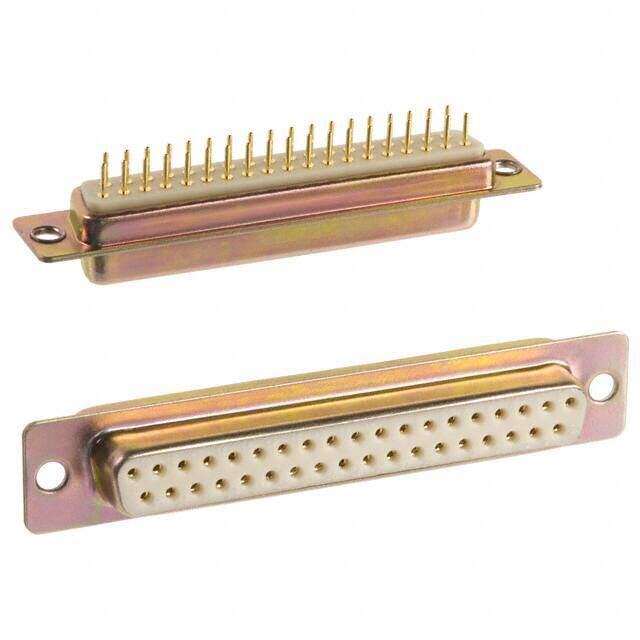

172-E37-211-001
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Connector
PDF
/
Inventory: 7479
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -50°C~100°C
Published 2002
Series 172-E
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 37
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Gender Female
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 4 DC C
Dimensions
Height 10.2mm
Length 69.4mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
