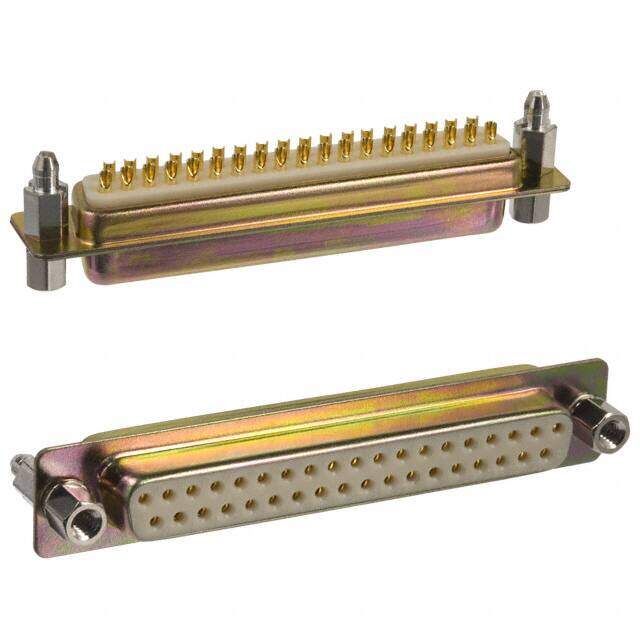

172-E37-201R911
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 37POS PNL MNT
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.696
≥1 USD $3.696
≥10 USD $3.31056
Inventory: 121
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.6mm
Length 69.4mm
Height 10.2mm
Technical
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Connector Style D-Sub
Flange Feature Cable Side (4-40); Mating Side, Female Screwlock (4-40)
Wire Gauge 20-26 AWG
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Number of Rows 2
Color White
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Board Lock
Series 172-E, M Series
Published 2005
Packaging Tray
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Brass
