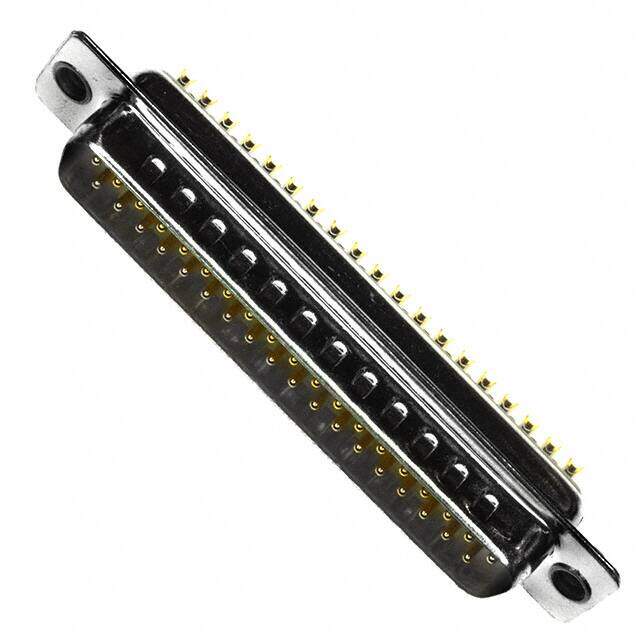

172-E37-102R011
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 37POS PNL MNT
PDF
/
Inventory: 4972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Technical
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Connector Style D-Sub
Flange Feature Cable Side (4-40)
Wire Gauge 20-26 AWG
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Shell Finish TIN
Current Rating 5A
Total Number of Contacts 37
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 2
Color White
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Series 172-E, M Series
Published 2008
Packaging Tray
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount
Mount Free Hanging, Panel
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
