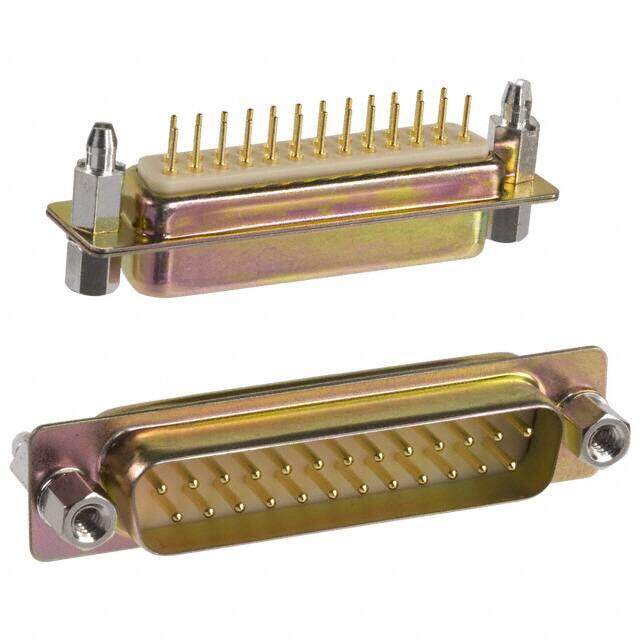

172-E25-111R911 image
Favorite
172-E25-111R911 image
Favorite

172-E25-111R911

NorComp Inc.
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 25P PNL MNT SLDR
PDF
/
Inventory: 9264
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash

Technical

Shell Size, Connector Layout 3 DB B
Contact Form Machined
Connector Style D-Sub
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Contact Finish Gold
Current Rating (Amps) 5A
Contact Type Signal
Number of Rows 2
Color White
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Board Lock
Series 172-E, M Series
Published 2009
Packaging Tray
Operating Temperature -50°C~100°C

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Dielectric Material Polyamide (PA6T), Nylon 6T
Mounting Type Panel Mount, Through Hole
Contact Material Brass
