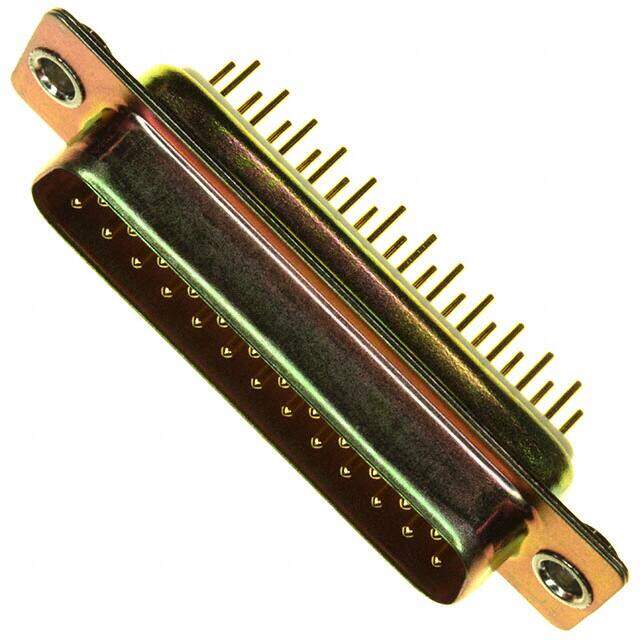

172-E25-111R011
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 25P PNL MNT SLDR
PDF
/
Inventory: 928
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.6mm
Length 53mm
Height 10.2mm
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Machined
Connector Style D-Sub
Flange Feature Board Side (4-40)
Housing Color White
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Number of Rows 2
Color White
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 172-E, M Series
Published 2009
Packaging Tray
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material Nylon
Dielectric Material Polyamide (PA6T), Nylon 6T
Mounting Type Panel Mount, Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass
