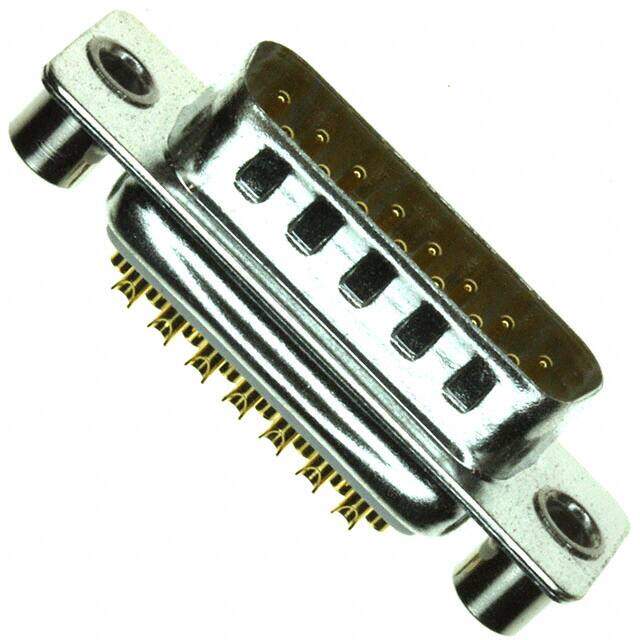

172-E15-102-021
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 15POS PNL MNT
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.7424
≥1 USD $1.7424
Inventory: 25
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass
Contact Plating Gold
Mount Free Hanging
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -50°C~100°C
Published 2004
Series 172-E
Feature Grounding Indents
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 15
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Cable Side (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Dimensions
Height 10.2mm
Length 39.2mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
