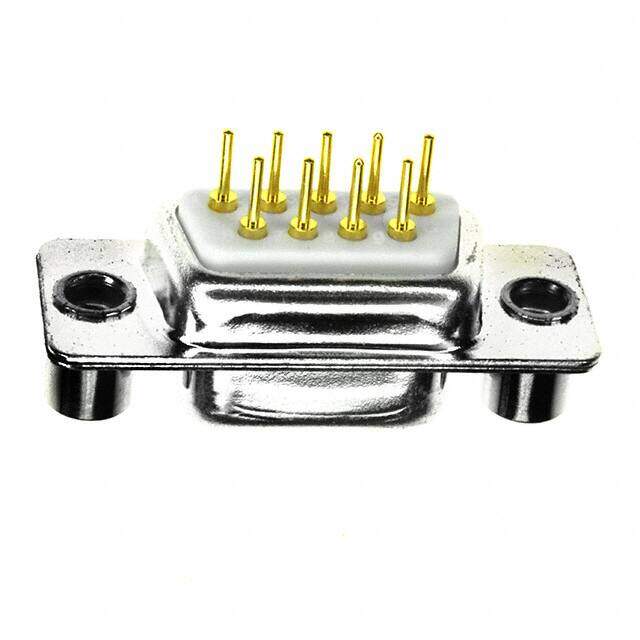

172-E09-212-031
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB RCPT 9POS PNL MNT SLDR
PDF
/
Inventory: 1513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.6mm
Length 30.8mm
Height 10.2mm
Technical
Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Flange Feature Mating Side (4-40)
Housing Color White
Contact Gender Female
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Gender Female
Number of Rows 2
Color White
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 172-E
Published 2002
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Shell Material Steel
Mounting Type Panel Mount, Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
