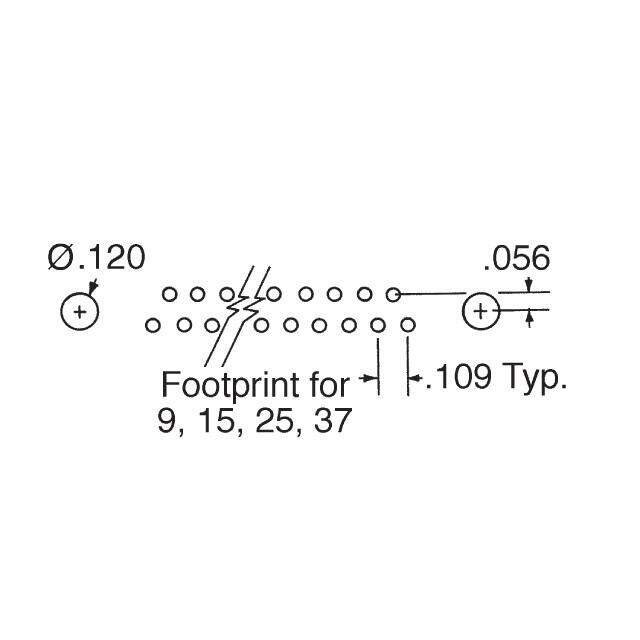

172-E09-211R001 image
Favorite
172-E09-211R001 image
Favorite

172-E09-211R001

NorComp Inc.
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN DSUB RCPT 9POS PNL MNT SLDR
PDF
/
Inventory: 6026
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 12.6mm
Length 30.8mm
Height 10.2mm

Technical

Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Housing Color White
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Number of Rows 2
Color White
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 172-E, M Series
Published 2005
Packaging Tray
Operating Temperature -50°C~100°C

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material Nylon
Dielectric Material Polyamide (PA6T), Nylon 6T
Mounting Type Panel Mount, Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass
