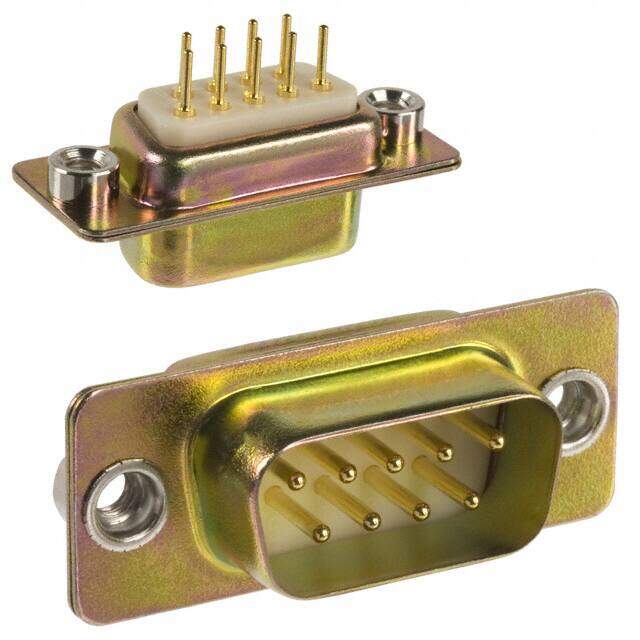

172-E09-111R011
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB PLUG 9POS PNL MNT SLDR
PDF
/
Inventory: 6587
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2009
Series 172-E, M Series
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Board Side (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Height 10.2mm
Length 30.8mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
