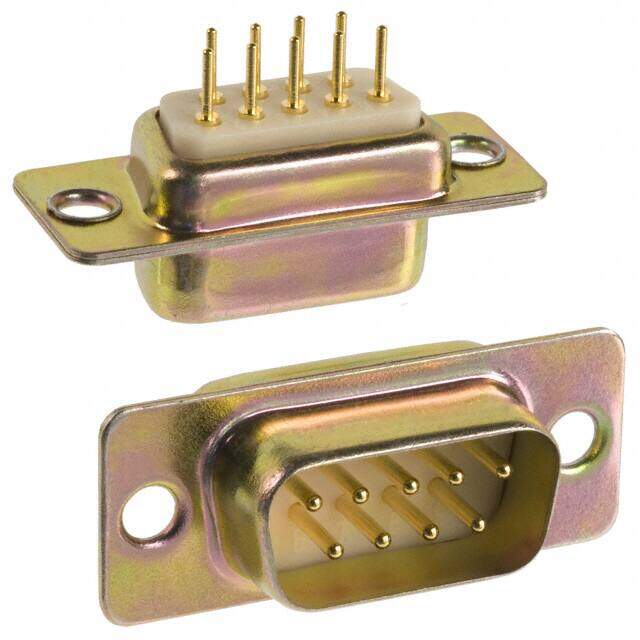

172-E09-111R001

NorComp Inc.
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN DSUB PLUG 9POS PNL MNT SLDR
PDF
/
Inventory: 3224
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Shell Material, Finish Steel, Yellow Chromate Plated

Technical

Operating Temperature -50°C~100°C
Packaging Tray
Published 2009
Series 172-E, M Series
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E

Dimensions

Height 10.2mm
Length 30.8mm
Width 12.6mm
Contact Finish Thickness Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
