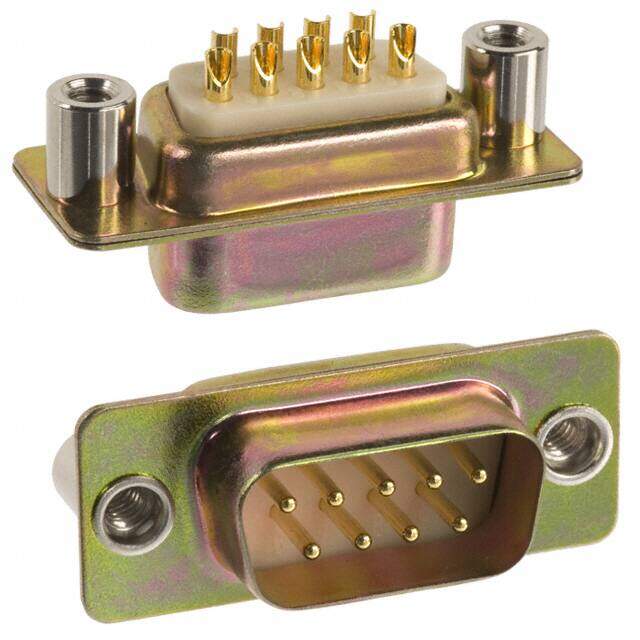

172-E09-101R021
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
172-E M Series Non-RoHS Compliant 2009 Lead Free Plug, Male Pins Connector UL94V-0 100C 5A Flash
PDF
/
Inventory: 5295
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2009
Series 172-E, M Series
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color White
Number of Rows 2
Contact Type Signal
Current Rating (Amps) 5A
Current Rating 5A
Contact Finish Gold
Housing Color White
Wire Gauge 20-26 AWG
Flange Feature Cable Side (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Height 10.2mm
Length 30.8mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
