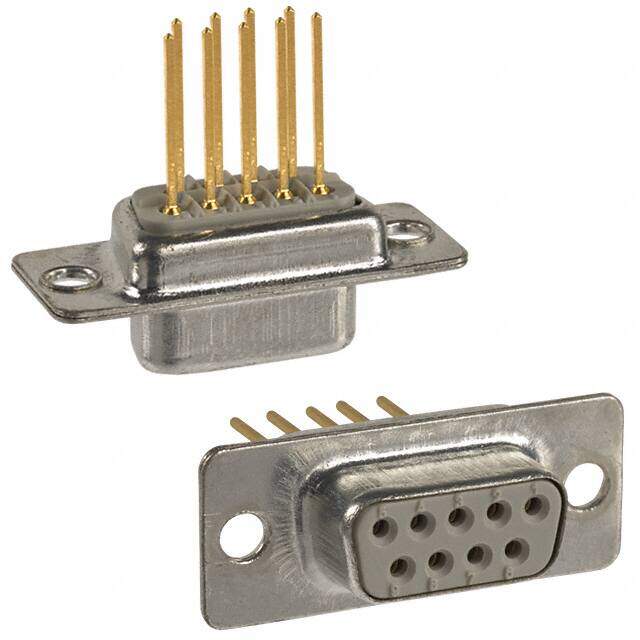

172-009-242R001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 9POS PNL MNT WW
PDF
/
Inventory: 9543
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.6mm
Length 30.8mm
Height 10.1mm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
Contact Finish Gold
Shell Finish TIN
Current Rating 5A
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Receptacle
Number of Rows 2
Color Beige
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Wire Wrap
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series 172, M Series
Published 2009
Packaging Tray
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Material Metal
Mounting Type Panel Mount, Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
