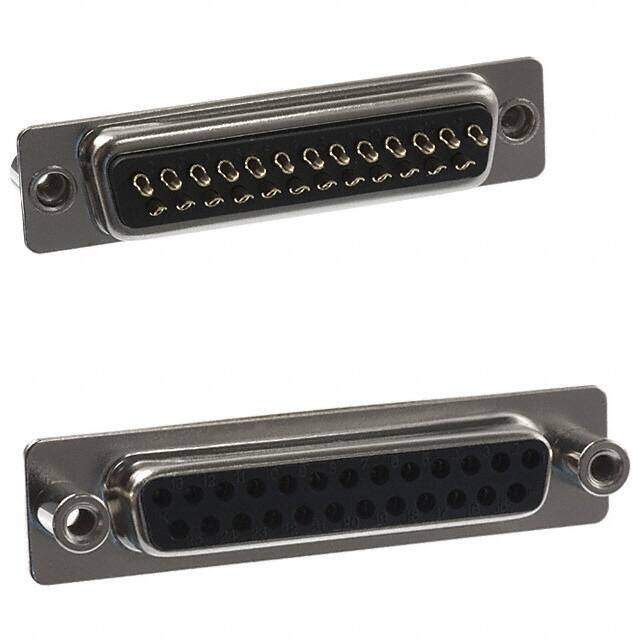

171-025-203L031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 25POS PNL MNT
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.596
≥1 USD $2.596
≥10 USD $2.36016
≥100 USD $2.235904
≥500 USD $2.183808
≥1000 USD $2.079792
≥3000 USD $1.819805
Inventory: 511
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Bronze
Mount Free Hanging, Panel
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -50°C~100°C
Packaging Tray
Published 2008
Series 171
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 25
Color Black
Number of Rows 2
Gender Female
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 25
Current Rating 5A
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20-28 AWG
Flange Feature Mating Side (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Dimensions
Height 9.56mm
Length 53mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
