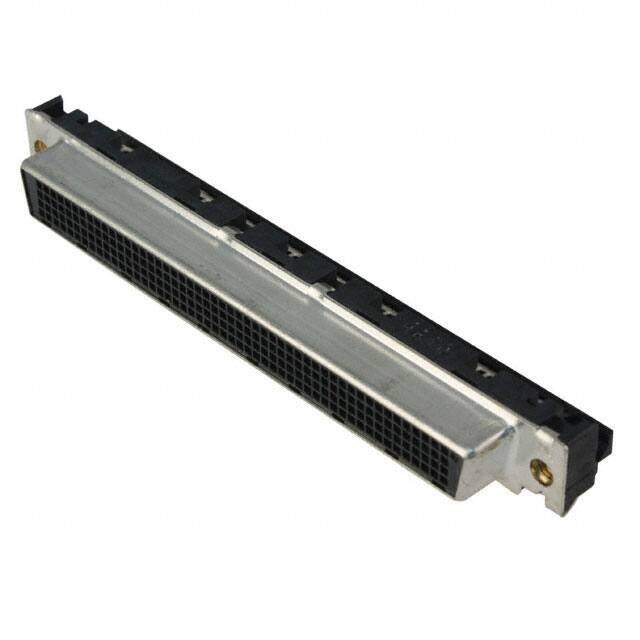

0717182000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DTYPE RCPT 200POS R/A SLDR
PDF
/
Inventory: 8085
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Connector Style D-Type, Board to Board, Matrix
Flange Feature Housing/Shell (M3)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Total Number of Contacts 200
Current Rating (Amps) 1A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature POLARIZED, SHIELDED
Voltage - Rated 40V
Number of Rows 4
Color Black
Number of Positions 200
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock, Ground Strap, Shielded
JESD-609 Code e3
Series Low Force Helix (LFH) 71718
Packaging Tube
Operating Temperature -20°C~80°C
Physical
Shell Material, Finish Steel, Tin Plated
Dielectric Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Panel Mount, Through Hole, Right Angle
Contact Material Beryllium Copper
