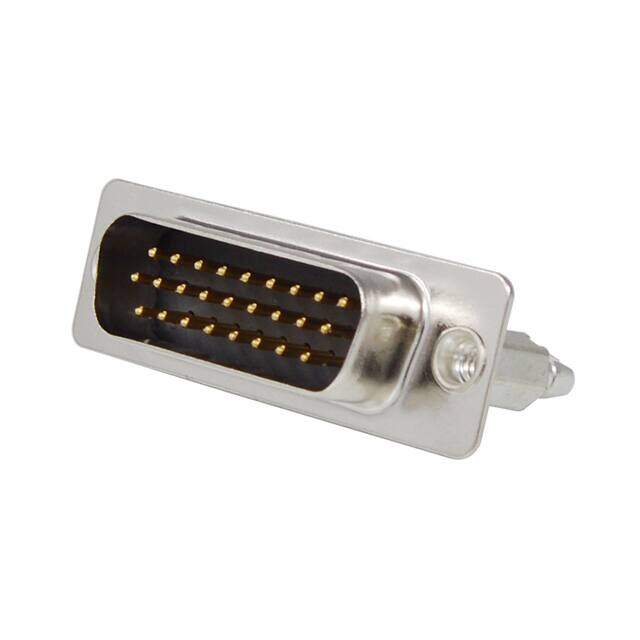

K86X-AD-26P-BR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Conn High Density D-Sub PIN 26 POS 2.29mm Solder ST Thru-Hole 26 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $6.64
Unit Price: USD $6.644
≥1 USD $6.644
≥10 USD $6.006
≥100 USD $5.673888
≥500 USD $5.535411
≥1000 USD $5.258625
≥3000 USD $4.70514
Inventory: 3824
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Series K86X
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 26
Color Black
Number of Rows 3
Gender Male
Voltage - Rated 30VAC
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1.5A
Pitch 2.29mm
Total Number of Contacts 26
Orientation Straight
Current Rating 2A
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.541 inch
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Body Breadth 0.494 inch
Empty Shell NO
Insulation Resistance 1000000000Ohm
Flange Feature Board Side (4-40)
Plating Tin
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub, High Density
PCB Contact Row Spacing 1.9812 mm
Contact Form Stamped
Shell Size, Connector Layout 2 DA A High Density
Dimensions
Contact Finish Thickness Flash
Length - Termination 0.169 inch
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
