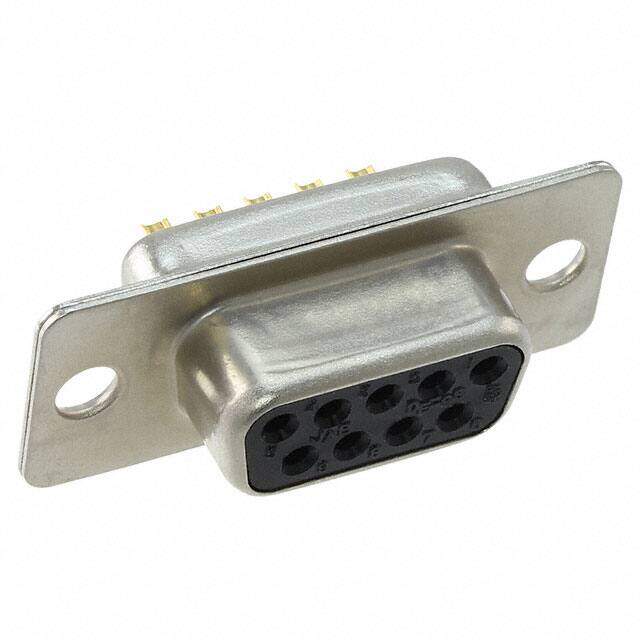

DE-9SF-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
cable side, socket, #20 AWG max, glass filled PBT, gold plating, stapmed contacts
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.8312
≥1 USD $4.8312
≥10 USD $4.36568
≥100 USD $4.124384
≥500 USD $4.023712
≥1000 USD $3.822544
≥3000 USD $3.542
Inventory: 6234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Published 2003
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Contact Type Signal
Current Rating (Amps) 5A
Contact Finish Gold
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
