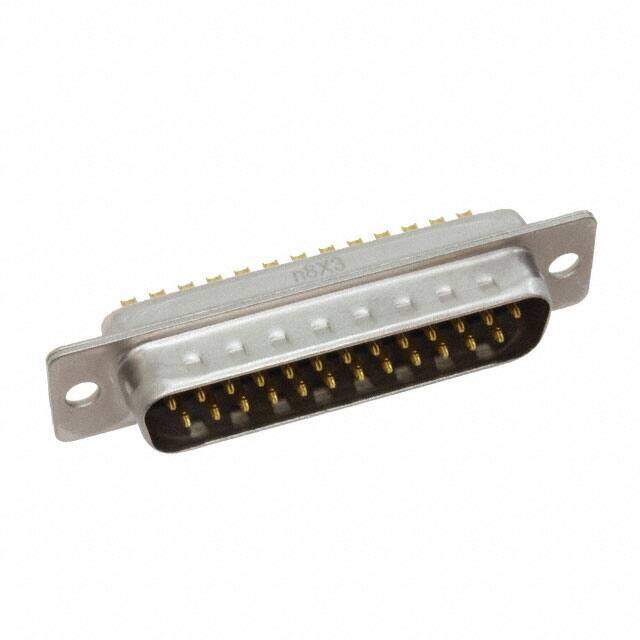

DB-25PF-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 25P STR SLDR CUP
PDF
/
Buying Options
Total Price: USD $11.26
Unit Price: USD $11.264
≥1 USD $11.264
≥10 USD $9.98272
≥100 USD $8.703112
≥500 USD $6.808921
Inventory: 609
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Published 2003
Feature Grounding Indents, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 25
Color Black
Number of Rows 2
Contact Type Signal
Current Rating (Amps) 5A
Contact Finish Gold
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
