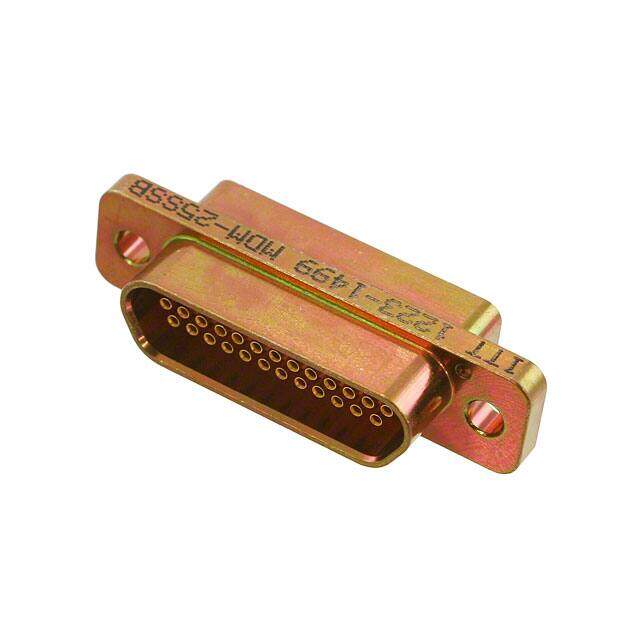

MDM-25SSB
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
ITT CANNON MDM-25SSBMICRO-D CONNECTOR, RECEPTACLE, 25 POSITION, SOLDER
PDF
/
Buying Options
Total Price: USD $135.99
Unit Price: USD $135.9864
≥1 USD $135.9864
≥10 USD $124.78752
≥100 USD $119.987648
≥500 USD $115.988048
Inventory: 218
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging, Panel
Mounting Type Panel Mount
Dielectric Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Shell Material, Finish Aluminum, Yellow Chromate Plated Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2002
Series 83513-Style Micro D Metal Shell (MDM)
JESD-609 Code e4
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 25
Color Black
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 25
Orientation Straight
Current Rating 3A
Shell Finish CADMIUM/YELLOW CHROMATE
Contact Finish Gold
Reliability COMMERCIAL
Body Breadth 0.308 inch
Rated Current (Signal) 3A
Contact Style Socket
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.05 inch
Max Current Rating 3A
Plating Aluminium, Cadmium, Chromate
Connector Style D-Type, Micro-D
Number of Ports 1
Mating Contact Row Spacing 0.043 inch
Shell Size, Connector Layout 0.050 Pitch x 0.043 Row to Row
Contact Design PREASSEM CONN
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
