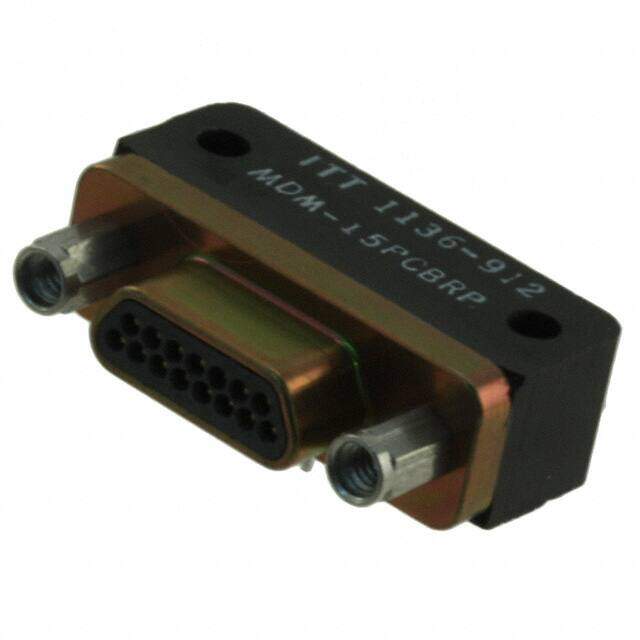

MDM-15PCBRP
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
Conn Micro D-Subminiature PIN 15 POS Solder RA Thru-Hole 15 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $72.76
Unit Price: USD $72.7584
≥1 USD $72.7584
≥10 USD $66.7656
≥100 USD $64.19776
≥500 USD $62.057952
≥1000 USD $58.634136
Inventory: 220
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Shell Material, Finish Aluminum, Yellow Chromate Plated Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2002
Series 83513-Style Micro D Metal Shell (MDM)
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 15
Color Black
Number of Rows 3
Gender Male
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 15
Orientation Right Angle
Terminal Pitch 2.54mm
Depth 15.39mm
Current Rating 3A
Shell Finish YELLOW CHROMATE/CADMIUM
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Rated Current (Signal) 3A
Contact Style Pin
Contact Resistance 8mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side, Female Screwlock (2-56)
Mating Contact Pitch 0.05 inch
Dielectric Withstanding Voltage 900VAC V
Connector Style D-Type, Micro-D
Number of Ports 1
PCB Contact Row Spacing 2.54 mm
Insertion Force-Max 2.224 N
Mating Contact Row Spacing 0.05 inch
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Dimensions
Length 23.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Alternative Model
