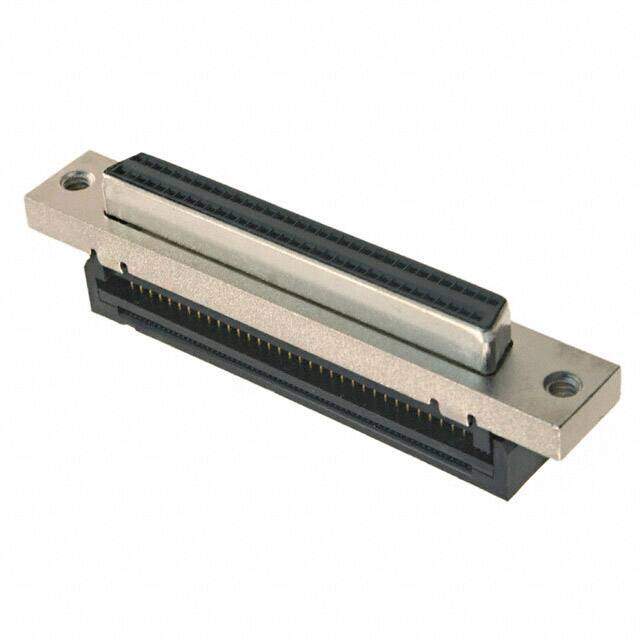

60040685344

HARTING
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description SOCKET, SCSI, PANEL MOUNT, FEP68W
PDF
/
Inventory: 7641
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Copper
Contact Plating Gold
Mount Cable, Panel
Mounting Type Panel Mount
Material Resin, Thermoplastic
Dielectric Material Thermoplastic, Glass Filled
Housing Material Thermoplastic

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Series har-mik?
Feature Feed Through
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 68
Number of Rows 2
Gender Receptacle
Voltage - Rated 240V
HTS Code 8536.69.40.30
Subcategory Other Rectangular Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.27mm
Total Number of Contacts 68
Orientation Straight
Depth 10.26mm
Current Rating 1A
Reference Standard UL
Reliability COMMERCIAL
Body Breadth 0.404 inch
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 1A
Contact Resistance 30mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (4-40)
Body/Shell Style PLUG
Connector Style D-Type
Number of Ports 1
Body Plating Nickel
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Insulator Color BLACK

Dimensions

Length 63.88mm
Width 63.88mm

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
