60010685232
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description

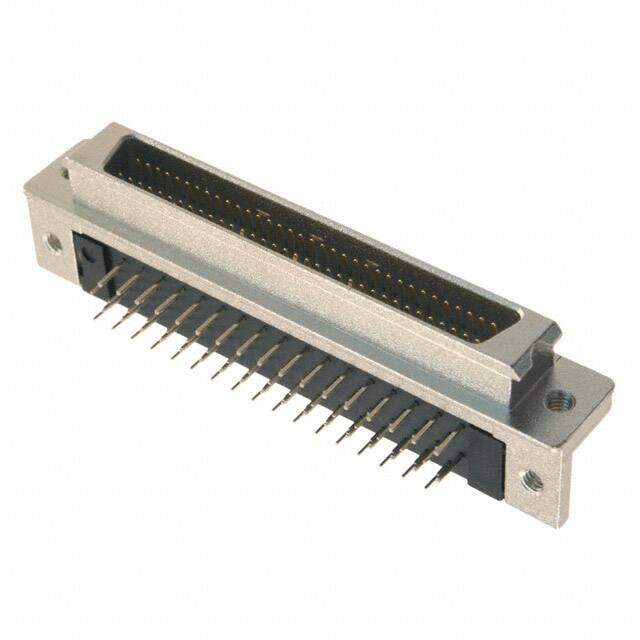

CONNECTOR, SCSI, PLUG, THT, R/A, 68WAY
PDF
/
Inventory: 3049
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 10.5mm
Length 63.88mm
Technical
Backset Spacing 0.185 (4.70mm)
Contact Design PREASSEM CONN
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Number of Ports 1
Connector Style D-Type
Dielectric Withstanding Voltage 750VAC V
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (M2.5); Latchblocks
Insulation Resistance 1GOhm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
Number of Contacts 68
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Current Rating 1A
Depth 17.3mm
Shielding Shielded
Orientation Right Angle
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Other Rectangular Connectors
HTS Code 8536.69.40.30
Voltage - Rated 240V
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Grounding Indents
Series har-mik?
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Material Resin, Thermoplastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper
