60010685140
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description

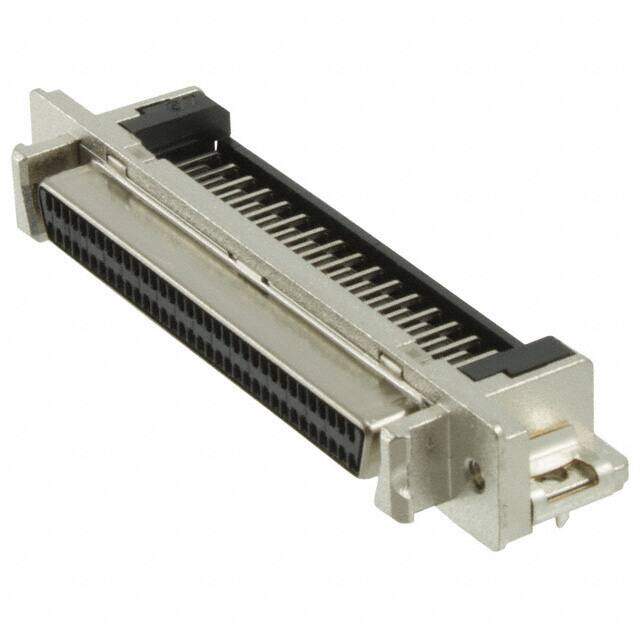

HARTING - 60 01 068 5140 - SOCKET, SCSI, WITH LATCH, 68W
PDF
/
Inventory: 7466
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Plating Thickness 30μin
Width 52.45mm
Length 63.88mm
Technical
Backset Spacing 0.185 (4.70mm)
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Number of Poles 68
Body Plating Nickel
Number of Ports 1
Connector Style D-Type
Body/Shell Style PLUG
Flange Feature Housing/Shell (M2.5); Latchblocks
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number Of PCB Rows 4
Reliability COMMERCIAL
Reference Standard UL
Current Rating 1A
Depth 17.4mm
Orientation Right Angle
Total Number of Contacts 68
Pitch 1.27mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Additional Feature PANEL MOUNTABLE
Voltage - Rated 240V
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series har-mik?
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Thermoplastic
Dielectric Material Thermoplastic, Glass Filled
Material Resin, Thermoplastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper
