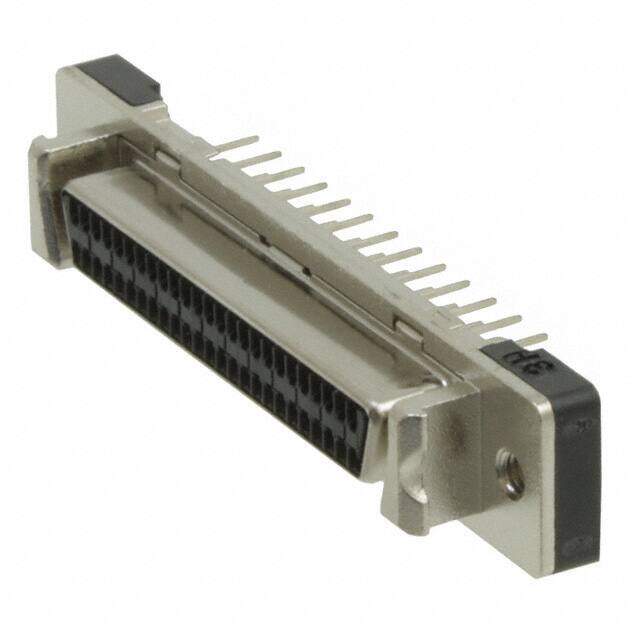

60010505102
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-TYPE RCPT 50POS VERT SLDR
PDF
/
Inventory: 9094
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Material Plastic, Resin, Thermoplastic
Dielectric Material Thermoplastic, Glass Filled
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series har-mik?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 2
Gender Receptacle
Voltage - Rated 240V
Additional Feature PANEL MOUNTABLE
HTS Code 8536.69.40.30
Subcategory Other Rectangular Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 50
Orientation Straight
Shielding Shielded
Depth 10.5mm
Current Rating 1A
Reference Standard UL
Reliability COMMERCIAL
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 1A
Contact Resistance 30mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (M2.5); Latchblocks
Connector Style D-Type
Number of Ports 1
Body Plating Nickel
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Design PREASSEM CONN
Dimensions
Length 52.45mm
Width 52.45mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
