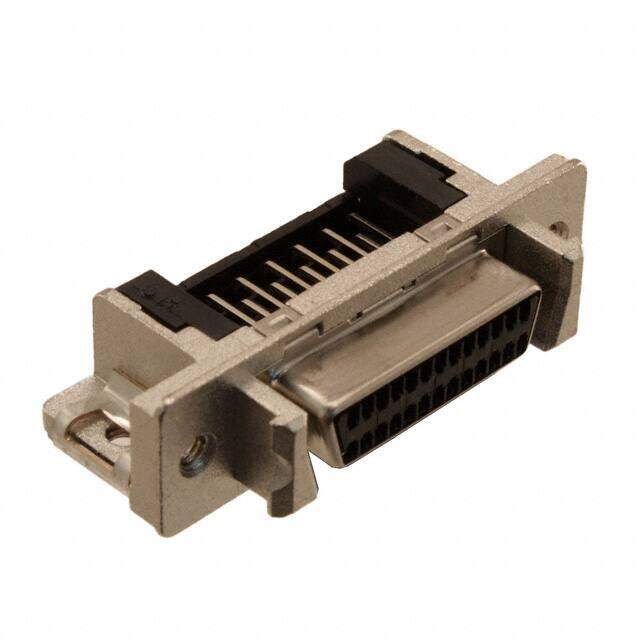

60010265140 image
Favorite
60010265140 image
Favorite

60010265140

HARTING
RoHS
/
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Micro-D Connectors HAR-MIK P/S 26F-SA M2,5 RAST
PDF
/
Inventory: 4048
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Plating Thickness 30μin
Width 10.5mm
Length 37.21mm

Technical

Backset Spacing 0.185 (4.70mm)
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Number of Ports 1
Connector Style D-Type
Flange Feature Housing/Shell (M2.5); Latchblocks
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number Of PCB Rows 4
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Current Rating 1A
Depth 17.4mm
Orientation Right Angle
Total Number of Contacts 26
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Additional Feature PANEL MOUNTABLE
Voltage - Rated 240V
Gender Female
Number of Rows 2
Number of Positions 26
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Lock
Series har-mik?
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Shell Material STEEL
Package / Case Metal
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material NOT SPECIFIED
