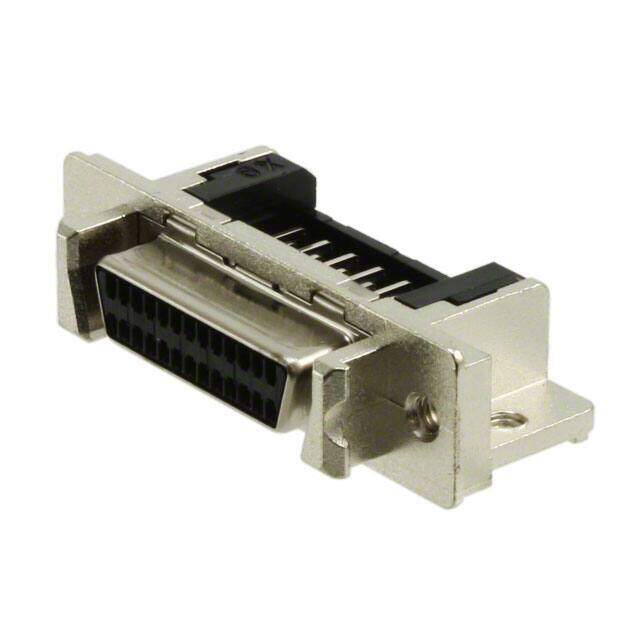

60010265132
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
I/O Connectors 26P FEMALE RA STD W/ LATCH SYSTEM
PDF
/
Inventory: 4220
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Shell Material STEEL
Dielectric Material Thermoplastic, Glass Filled
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Series har-mik?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 26
Number of Rows 2
Gender Female
Voltage - Rated 240V
Additional Feature PANEL MOUNTABLE
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.27mm
Total Number of Contacts 26
Current Rating 1A
Shell Finish NICKEL
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.465 inch
Number Of PCB Rows 4
PCB Contact Pattern STAGGERED
Body Breadth 0.413 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.484 inch
Rated Current (Signal) 1A
Contact Resistance 30mOhm
Insulation Resistance 1000000000Ohm
Flange Feature Housing/Shell (M2.5); Latchblocks
Connector Style D-Type
PCB Contact Row Spacing 1.905 mm
Mating Contact Row Spacing 0.1 inch
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Backset Spacing 0.185 (4.70mm)
Dimensions
Plating Thickness 30μin
Length - Termination 0.134 inch
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
